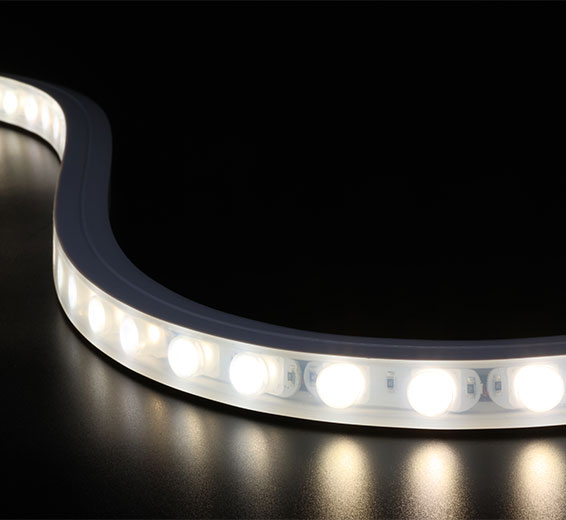

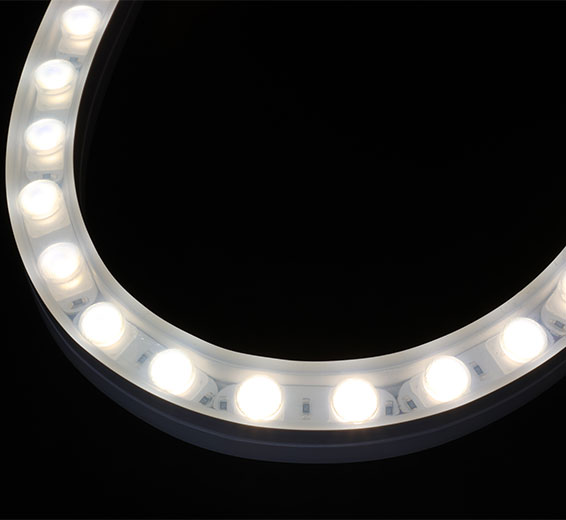

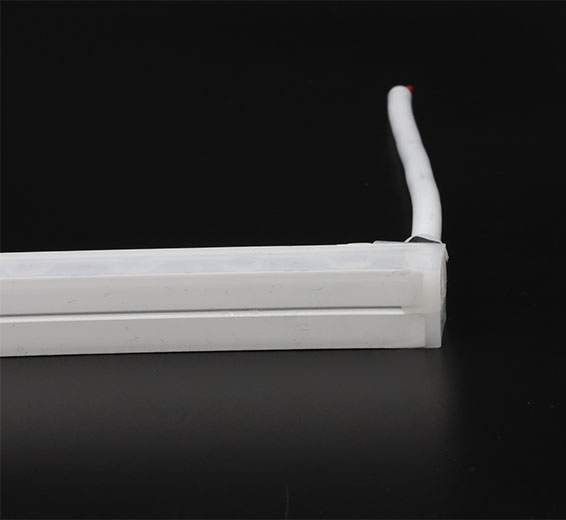

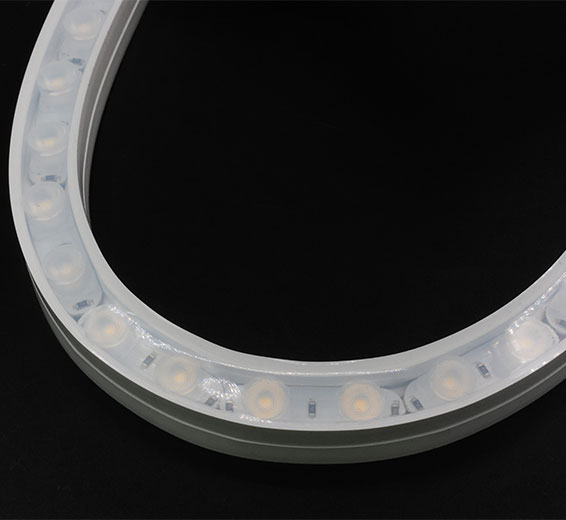

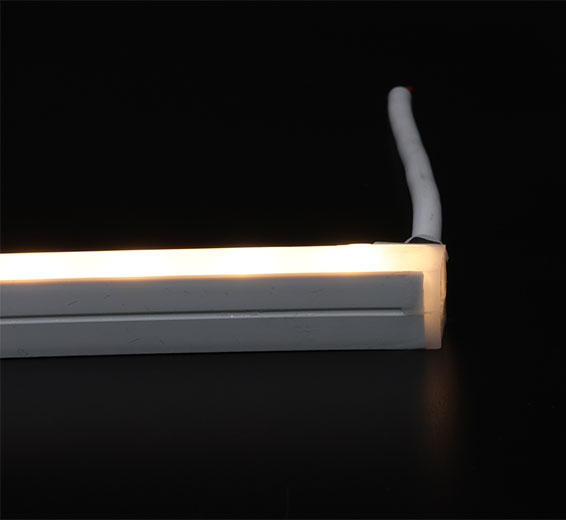

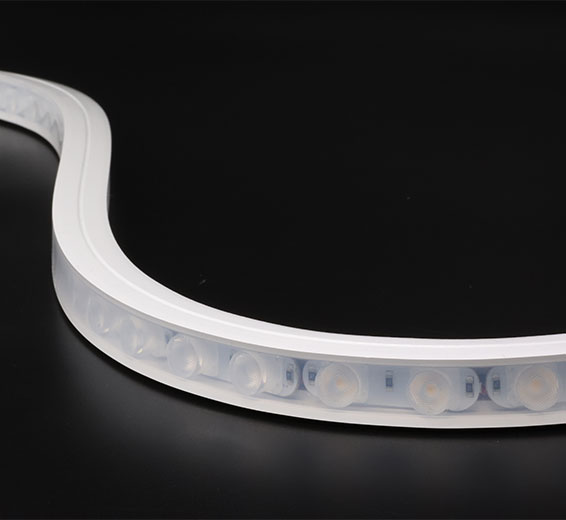

UN-GJ-DC24-2835-48-16-940-1616-ZC-T301-IP65
  • Professional secondary optical processing,multiple lens,concentrated light for wall-washing & accent lighting scenario;
  • 3D bend to be perfectly suitable for columns curved architectonic surfaces without any shadows or dark areas;
  • A wide variety of installation accessories for applications.
Parameter Details
  • Led Type:
    SMD2835
  • Lens Angle:
    30°、45*60°
  • Led/M:
    48
  • Bending Direction:
    3D
  • Color:
    Static color-white
  • Power per meter:
    16W
  • Control Mode:
    Swtich/Dimming
  • Working temperature:
    -20°C-45°C
  • Voltage:
    DC24V
  • Lumens output:
  • 2700K
    1155lm/M
  • 3000K
    1304lm/M
  • 4000K
    1402lm/M
  • 6000K
    1320lm/M

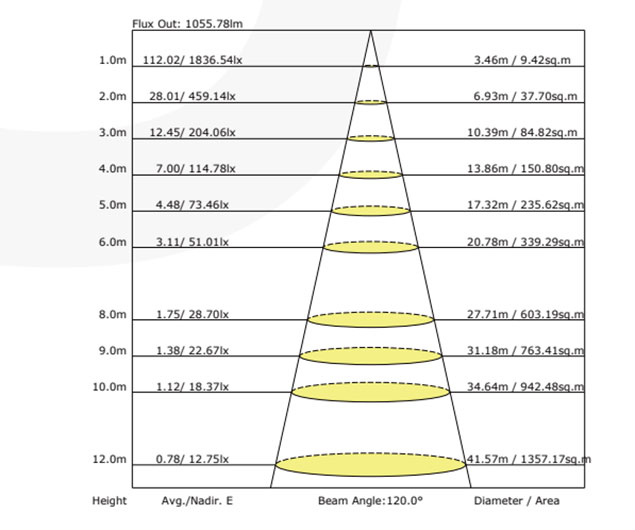

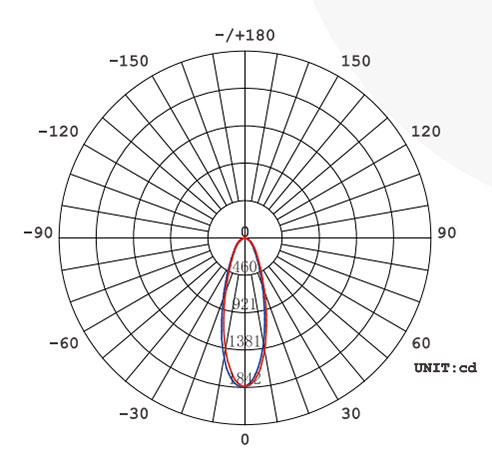

Light Distribution
AVERAGE BEAM ANGLE(50%):33.4DEC
